Product Description:
The Inflatable Rubber Oil Boom is a vital device for emergency containment of oil spills, preventing the spread of oil, and transferring oil to designated areas. It is widely used in open seas, harbors, docks, rivers, offshore oil platforms, and ship salvage operations.
Main Accessories:
– Power Station
– Inflation/Deflation Machine
– Tow Head

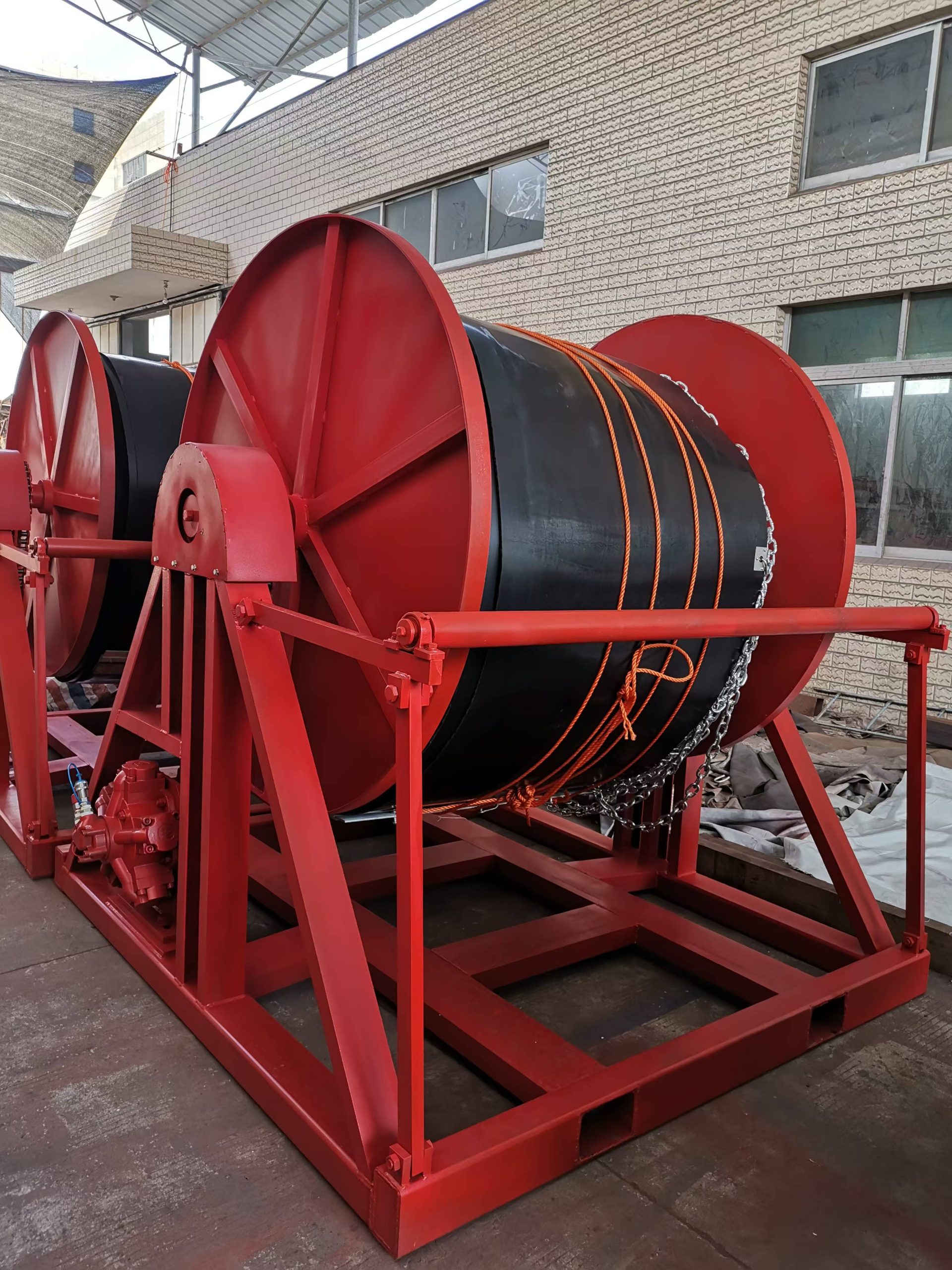

– Reeling Frame

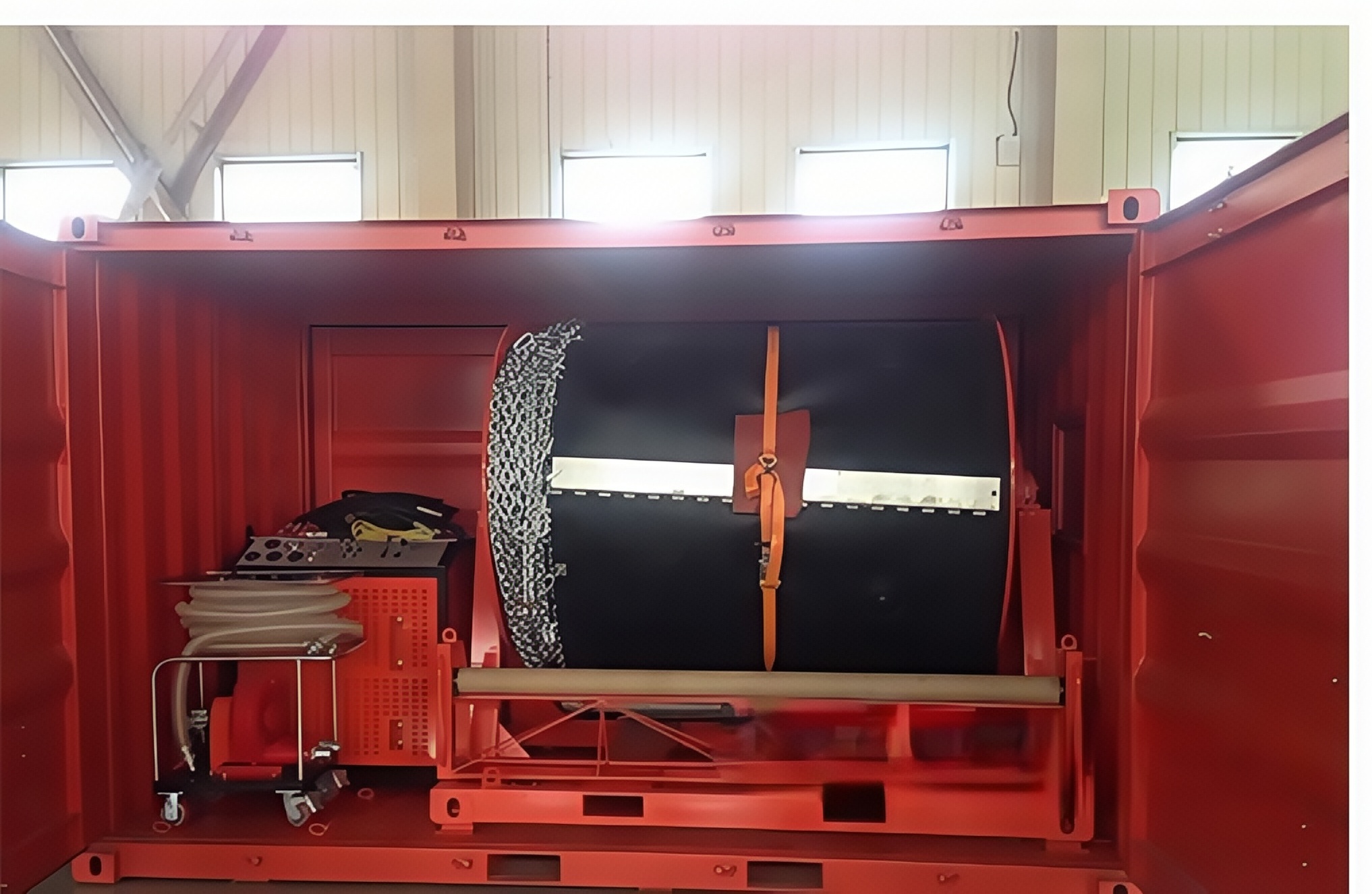

– Container
Product Features:
– Double-layer high-strength nylon canvas framework with an outer layer of high-quality synthetic rubber that is resistant to oil and aging.
– Unique valve design for convenient and rapid inflation, ensuring excellent airtightness.
– Elastic support rods between air chambers provide good rigidity to the oil boom, effectively preventing wave overtopping.
– Tensioned weight chains act as a barrier to prevent damage to the oil boom.
– Optional night glow markers or reflective rubber colors for easy identification.
– Optional fire-retardant rubber for high fire safety requirements.
– Customizable accessories such as tow heads, tow ropes, and anchor seats can be provided based on customer needs.
| Model | Length | Unit
Length |
Above-Water Height | Under-Water Heifght | Tension | Wave
resistance |
Flow
resistance |
Wind
resistance |
Inflation pressure | Towing
speend |
Working
temp |
| WQJ1000 | 1000 mm | 200 m | 300 mm | 550 mm | 140 kn | 2 m | 3 knot | 15 m/s | 5000 pa | 7 knot | -30-70 ℃ |
| WQJ1200 | 1200 mm | 200 m | 400 mm | 650 mm | 160 kn | 2.5 m | 3.5 knot | 20 m/s | 6000 pa | 7 knot | -30-70 ℃ |
| WQJ1500 | 1500 mm | 200 m | 500 mm | 750 mm | 200 kn | 3 m | 3.5 knot | 20 m/s | 7000 pa | 8 knot | -30-70 ℃ |
| WQJ 2000 | 2000 mm | 200 m | 600 mm | 1100 mm | 220 kn | 3.5 m | 4.0 knot | 20 m/s | 8000 pa | 8 knot | -30-70 ℃ |
