Product Description:

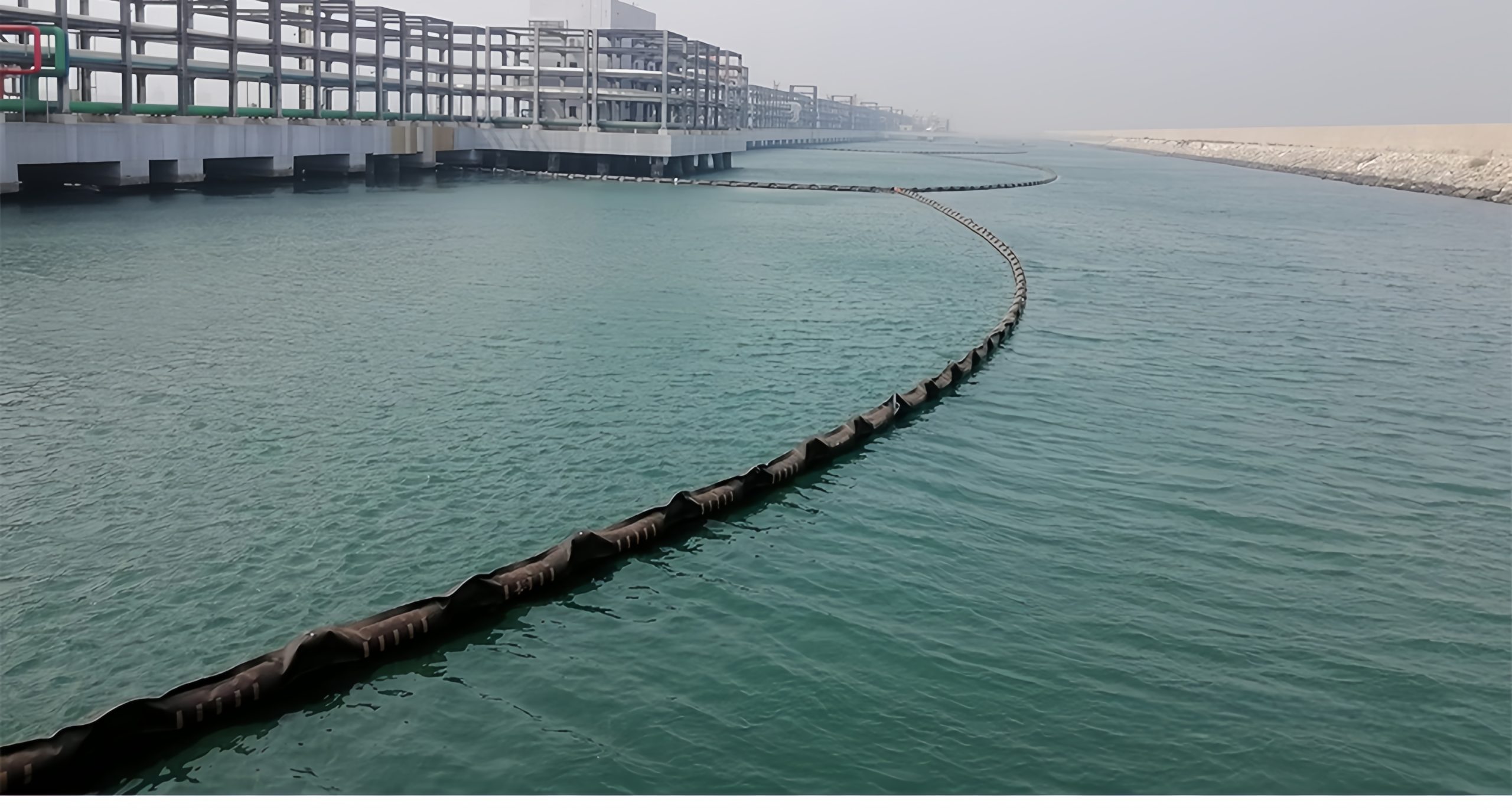

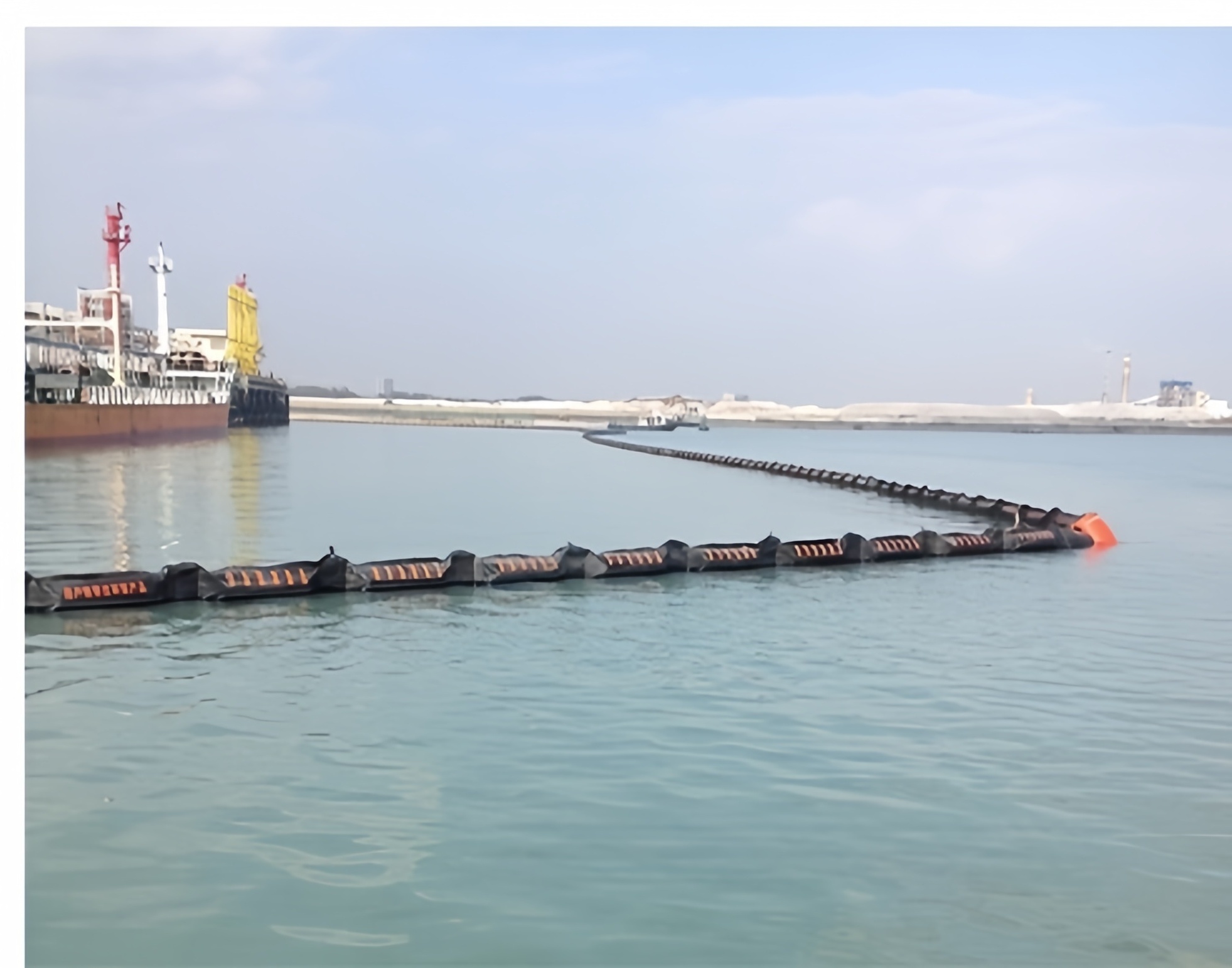

The Solid Heavy Duty Containment Boom is an essential device for controlling and transferring oil spills in oceans and other water areas. It is designed for long-term deployment on water surfaces and is widely used in open seas, bays, ports, docks, rivers, and oil platforms. It is also suitable for emergency oil spill response operations.
Product Features:
– Double-layer high-strength nylon canvas with an outer layer of high-quality synthetic rubber that is resistant to oil and aging.
– Strong resistance to wind and waves, with ample buoyancy reserve and even stress distribution across the boom body, ensuring a long service life.
– Solid buoyancy units provide high strength and excellent stability.
– Tensioned weight chains and weights can be selected by users according to their specific needs.
– Optional night glow markers or reflective rubber colors for easy identification.
– Fire-retardant rubber is available for oil booms that require fire-resistant properties.
– Customizable accessories such as tow heads, tow ropes, and anchor seats can be selected or designed according to user requirements.
| Model | Height | Unit
Length |
Above-Water Height | Under-Water Heifght | Tension | Wave
resistance |
Flow
resistance |
Wind
resistance |
Towing
speed |
Working
temp |
| WGJ 800 | 800 ±10 mm | 20 m | 280 mm | 430 mm | 140 kn | 2 knot | 2.5 knot | 15 m/s | 3-7 knot | -30-60℃ |
| WGJ1000 | 1000 ±10
mm |
20 m | 340 mm | 510 mm | 160 kn | 2.5 knot | 3 knot | 15 m/s | 3-7 knot | -30-60℃ |
| WGJ1200 | 1200±15
mm |
20 m | 390 mm | 610 mm | 180 kn | 3 knot | 3 knot | 20 m/s | 4-8 knot | -30-60℃ |
| WGJ1500 | 1500±15
mm |
20 m | 500 mm | 750 mm | 200 kn | 3 knot | 3.5 knot | 20 m/s | 4-8 knot | -30-60℃ |
