Product Description:

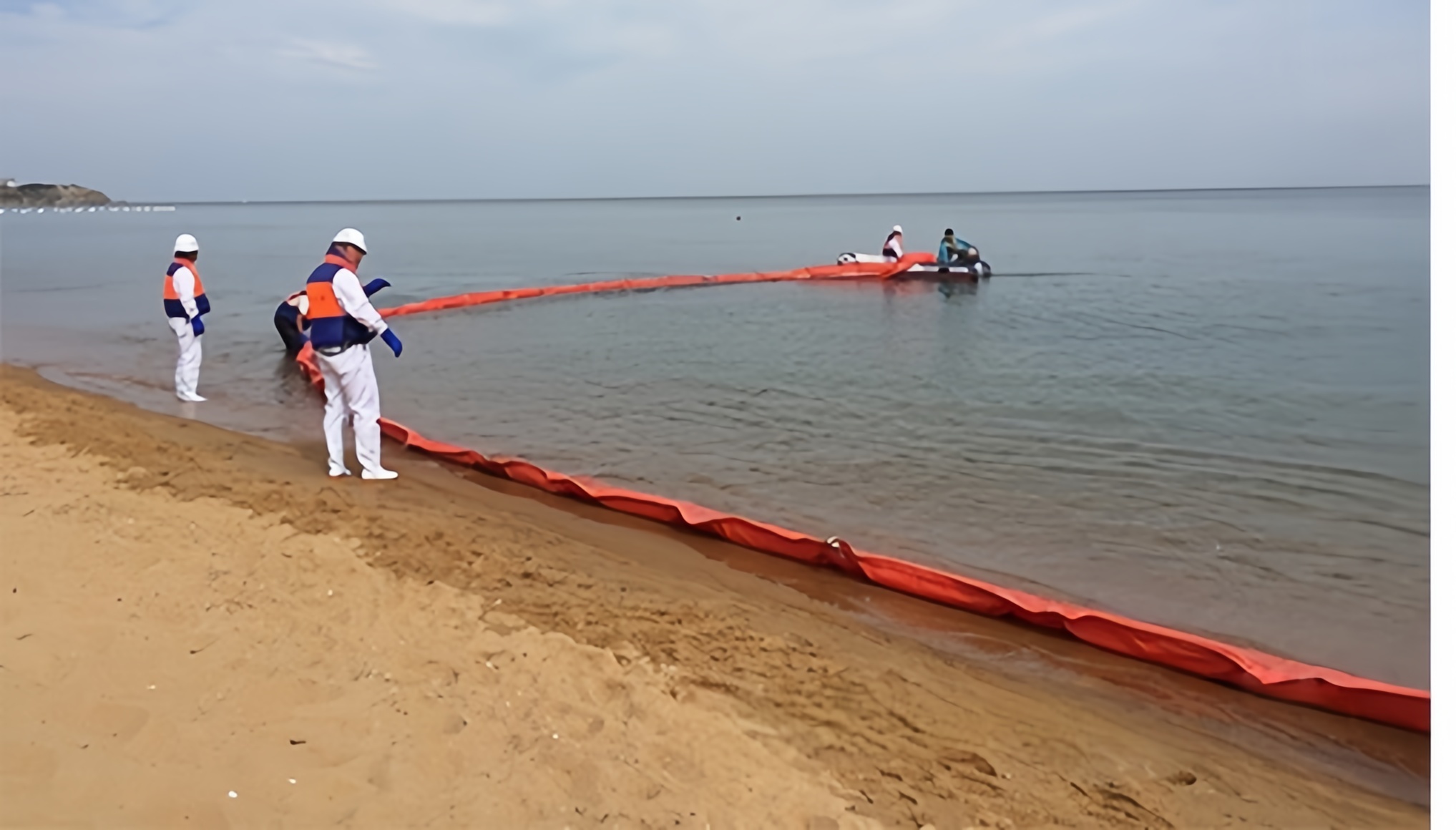

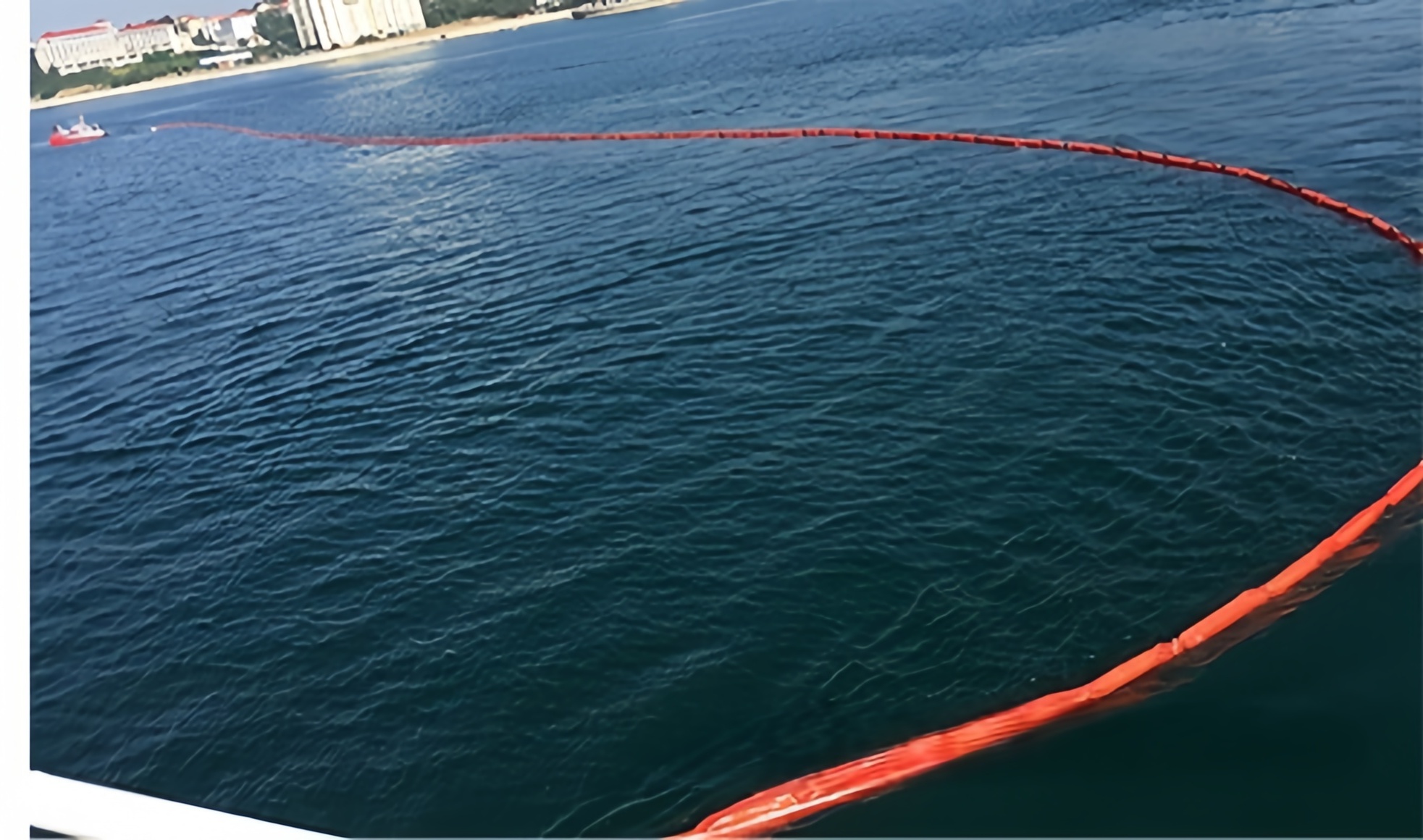

The Solid PVC Oil Boom is an economical and versatile type of oil boom, designed to intercept oil spills and other floating debris on water surfaces. It is suitable for long-term fixed deployment on water and is widely used in rivers, bays, lakes, and nearshore oil platforms due to its rapid deployment and ease of operation.
Product Features:
– Constructed from high-strength fabric coated with bright orange PVC on both sides, offering excellent resistance to oil and aging.
– Solid buoyancy units provide ample buoyancy reserve, ensuring good wave-following performance and stability.
– The boom body is equipped with tow ropes, reinforcing straps, and tensioned weight chains as load-bearing components, providing high tensile strength.
| Model | Height | Unit Length | Above-Water Height | Under-Water Heifght | Tension | Wave resistance | Flow resistance | Wind resistance | Towing
speed |
Working
temp |
| WGV750 | 750 ±10 mm | 20 m | 220 mm | 430 mm | 130 kn | 1.3 m | 2.2 knot | 10 m/s | 3-6 knot | -30-60℃ |
| WGV900 | 900 ±10 mm | 20 m | 340 mm | 470 mm | 145 kn | 2 m | 3.0 knot | 15 m/s | 3-6 knot | -30-60℃ |
| WGV1100 | 1100±10 mm | 20 m | 400 mm | 590 mm | 160 kn | 2.5 m | 3.2 knot | 16 m/s | 4-7 knot | -30-60℃ |
| WGV1300 | 1300±10 mm | 20 m | 450 mm | 650 mm | 170 kn | 3.0 m | 3.5 knot | 18 m/s | 4-8 knot | -30-60℃ |
| WGV 2000 | 2000±10 mm | 20 m | 550 mm | 1150 mm | 190 kn | 3.5 m | 4.0 knot | 20 m/s | 4-9 knot | -30-60℃ |
